The multifunction Series 4000 is a range of fully automated, computerized test systems that provide the highest level of
specifications and features available in the industry.
From the base system that provides the highest level of accuracy and time resolution, features can be added to allow the Series 4000 system to perform virtually any type of test, with any type of products (i.e. batteries, super-capacitors, fuel cells, etc.) and chemistries.
Each test position:
• Operates independently of the other positions
• Can be user programmed to run a wide range of multi step tests, including pulse tests
• Can be user programmed to operate in steps of fixed current, fixed power, fixed voltage, fixed resistance, and voltage ramp (cyclic voltammetry)
• Can be set up to record data at operator specified intervals of time, voltage, current, etc.
• Is delivered calibrated to NIST traceable standards, and requires calibration only once per year

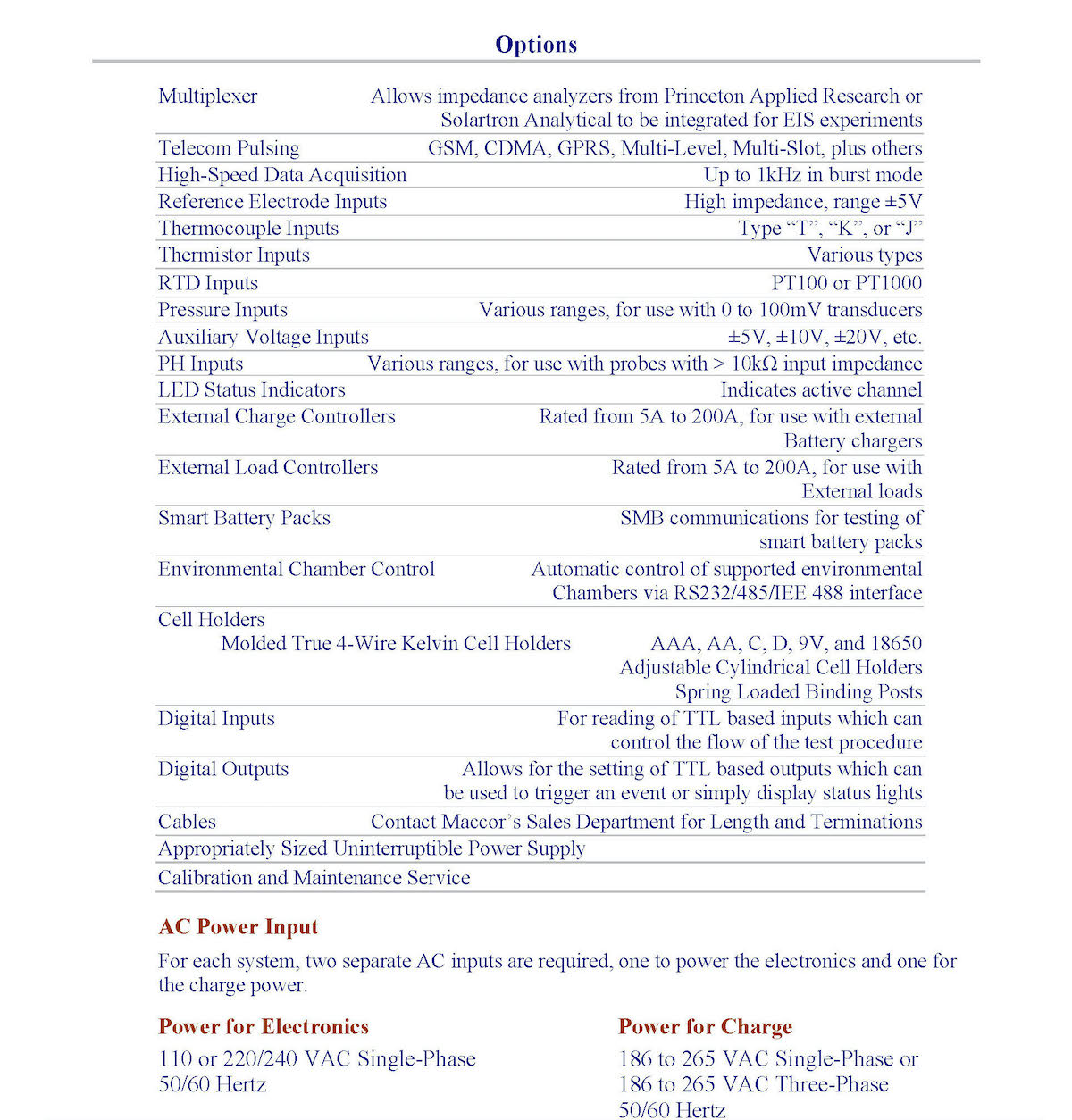

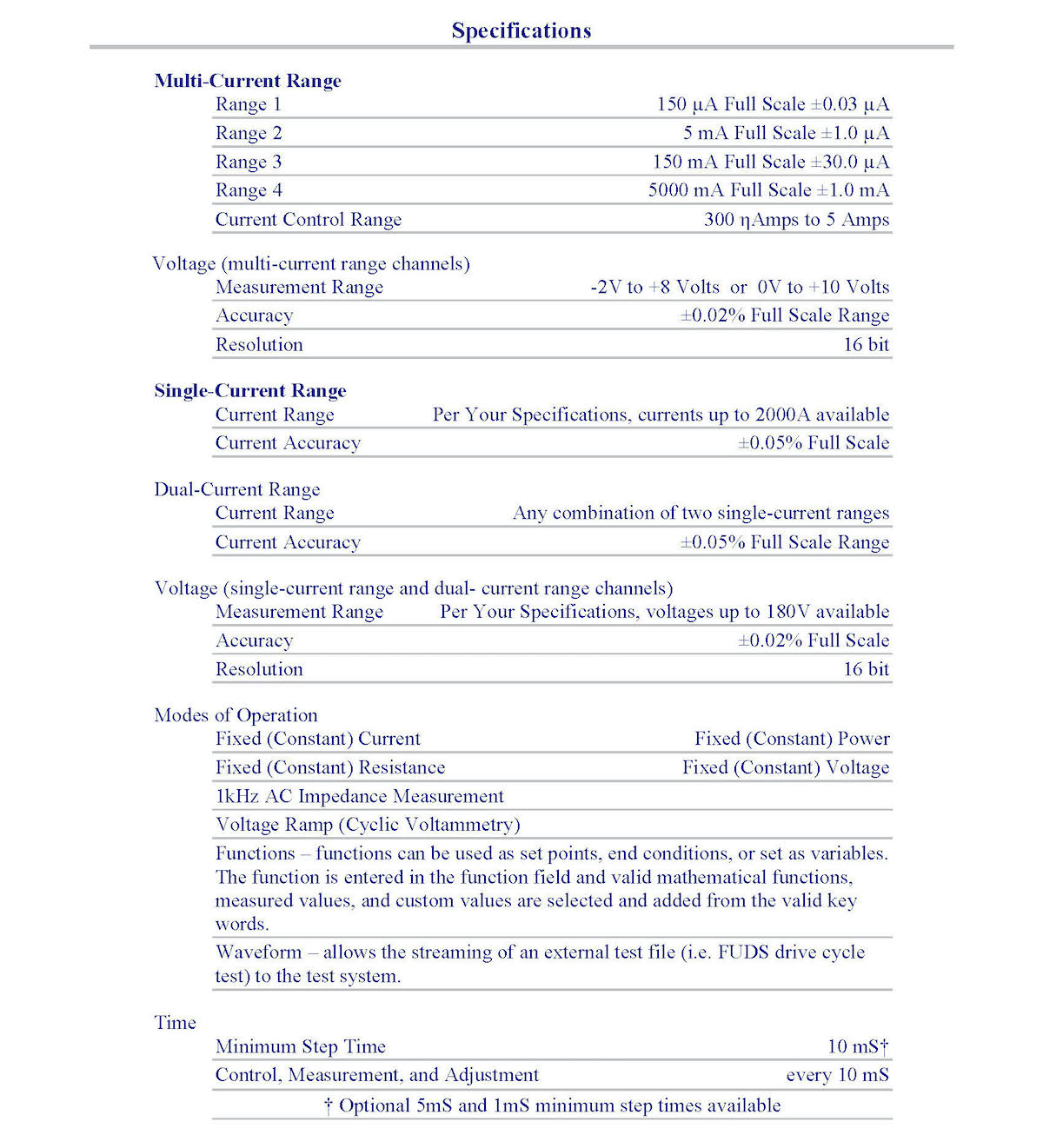

The Series 4000 systems are available in sizes from 1 to 192 test positions and are custom manufactured to meet a specific customer’s requirements. They can be configured with a wide range of voltage and current ranges and can be fitted with optional hardware to provide a number of additional features and capabilities.
Based on tried and proven technology, the Series 4000 is designed to be readily upgradeable.
This allows Maccor to continuously introduce new features that keep up with the everchanging requirements and level of sophistication demanded by our customers.

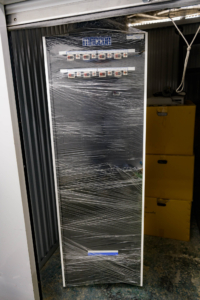

Supplied as a complete turnkey system, the Series 4000 consists of a test cabinet, PC computer, tester software, and data analysis software. The test cabinet, with embedded microprocessors, and PC computer are connected via a 10 Base T LAN communications network.
To provide maximum reliability, flexibility, and speed of operation, embedded microprocessor controller boards provide control of the tests and collect data. Each controller supports from one to eight test channels, dependent on the application. In addition, the test cabinet contains the individually controlled programmable loads and power supplies. Each test channel is operated independently. This allows different tests to be performed on different test channels simultaneously. Once started, tests operate automatically until the appropriately programmed test end condition is reached. Tests are programmed, by the operator, on the host PC computer using a menu-driven build test program which is extremely user friendly and easy to use. When a test is started, the test program is downloaded to the appropriate channel’s embedded controller board. The controller board controls the test and collects the initial data measured by the programmable load. This measured data is then transferred to the PC computer for processing and storage.
The flexibility of the Series 4000 allows it to be used for a wide range of applications such as Materials Research, Portable Electronic Devices, Quality Control in Manufacturing, Research & Development, Battery Pack Assembly, Super-Capacitor Testing, Fuel Cell Testing, Thermal Battery Testing, Qualification Testing, and much much more.
